Minipower Tiller/ Cultivator
Minipower Tiller/ Cultivator
The mini power tiller has multiple functions with related tools. It’s widely used in dry-lands, water fields
and orchards in plains, mountains and hills, saving the trouble of large agricultural machinery not
being able to enter the mountainous fields. It can be exercised freely in the field, with good tillage
effect and high efficiency. It can be equipped with the corresponding equipment for pumping, power
generation, spraying, and other operations, and can also be towed by a trailer for short-distance
transport.
The Mini tiller is characterized by its compact, powerful, light weight, small size and easy
operation, most importantly, inexpensive, it become one of the most popular best-selling
machines on the market.
Varients:-

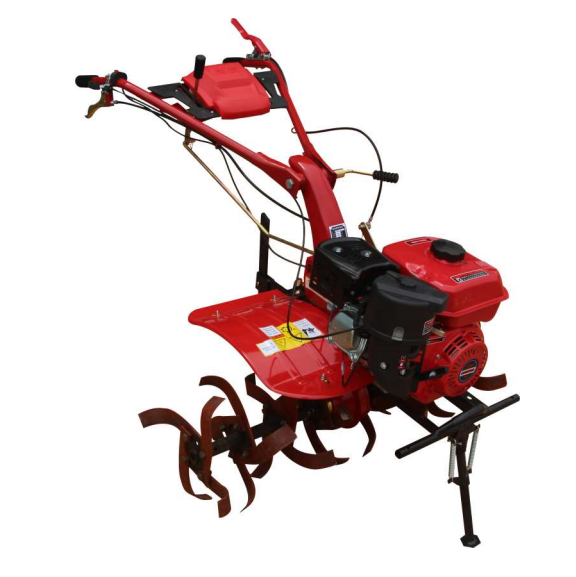

170 Petrol Power Tiller
Main Technical Parameters:
Engine model : 170 Petrol Power Tiller
Engine Power (kw/rpm) 4.0kw/3600RPM 5HP
Fuel Tank Capacity
(L) 3.6L
Displacement
(cc) 208cc
Transmission
: Gear Drive
Gear Shift
: 2 Forward+1 Reverse/ Neutral
Starting System
: Recoil Start
Tilling Width
(mm) 800-1200mm
Tilling Depth
(mm) ≥100mm
Package Size
(mm) 820*450*780
Weight
(kg) N.W. 78/ G.W. 85
Accessories
: one set of tires one set of tires (400-8)
one set of dry land blades (3pcs/4group)
Tool Kit

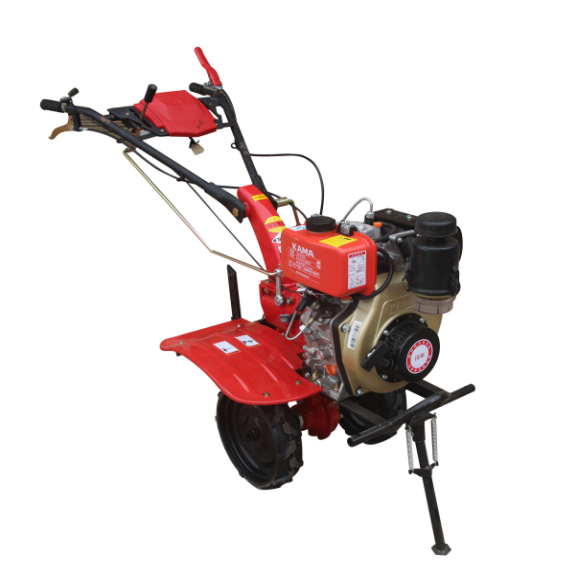

173F Heavy Duty Diesel Power Tiller
Main Technical Parameters:
Engine model : 173F Diesel Power Tiller
Engine Power (kw/rpm) 4.05kw/3600RPM 5.5HP
Fuel Tank Capacity
(L) 3.6L
Displacement
(cc) 210cc
Transmission
: Gear Drive
Gear Shift
: 2 Forward+1 Reverse/ Neutral
Starting System
: Recoil Start
Tilling Width
(mm) 800-1200mm
Tilling Depth
(mm) ≥100mm
Package Size
(mm) 820*450*780
Weight
(kg) N.W. 90/ G.W. 100
Accessories
: one set of tires one set of tires (400-8)
one set of dry land blades (3pcs/4group)
Tool Kit

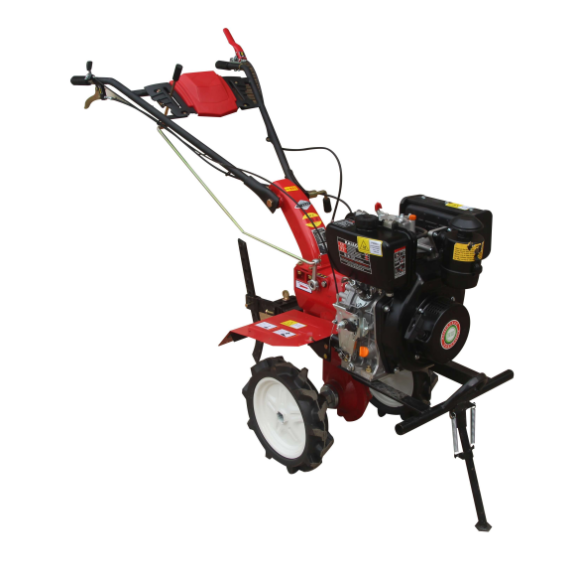

178F Heavy Duty Diesel Power Tiller
Main Technical Parameters:
Engine model : 178F Diesel Power Tiller
Engine Power (kw/rpm) 4.1kw/3600RPM 6HP
Fuel Tank Capacity
(L) 3.6L
Displacement
(cc) 296cc
Transmission
: Gear Drive
Gear Shift
: 2 Forward+1 Reverse/ Neutral
Starting System
: Recoil Start
Tilling Width
(mm) 1050-1350mm
Tilling Depth
(mm) ≥100mm
Package Size
(mm) 1000*565*820
Weight
(kg) N.W. 116/ G.W. 126
Accessories
: one set of tires 400-8(standard)/500-12(optional)
one set of dry land blades (4pcs/4group)
Tool Kit

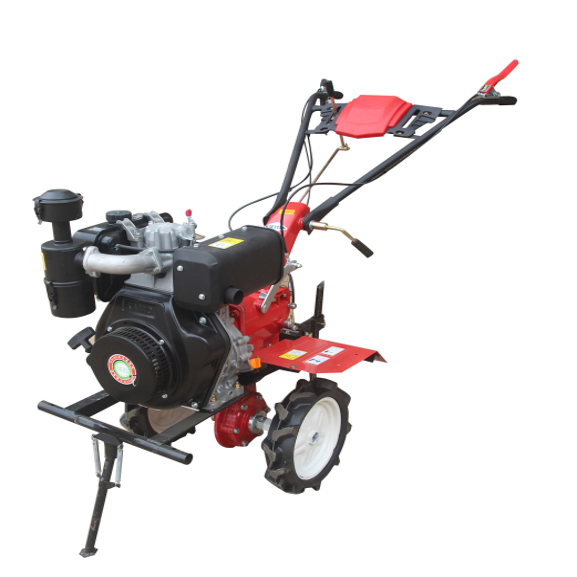

186F Heavy Duty Diesel Power Tiller
Main Technical Parameters:
Engine model : 186F Diesel Power Tiller
Engine Power (kw/rpm) 6.3kw/3600RPM 9HP
Fuel Tank Capacity
(L) 5.5L
Displacement
(cc) 406cc
Transmission
: Gear Drive
Gear Shift
: 2 Forward+1 Reverse/ Neutral
Starting System
: Recoil Start
Tilling Width
(mm) 1050-1350mm
Tilling Depth
(mm) ≥150mm
Package Size
(mm) 1000*565*820
Weight
(kg) N.W. 125/ G.W. 135
Accessories
: one set of tires 400-8(standard)/500-12(optional)
one set of dry land blades (4pcs/4group)
Tool Kit
Power Tiller Accessories

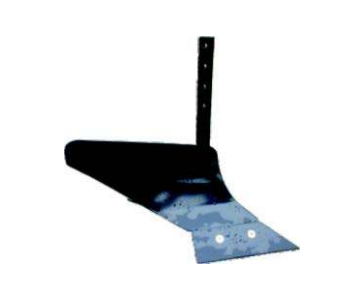

One side plough
Tyre 350-6

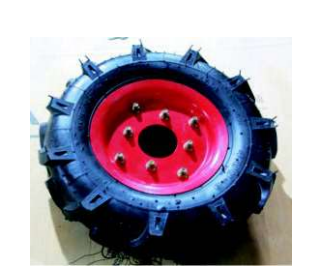

Tyre 400-8
Anti-wind blades assy
Grass cutter
Paddy land metal wheel

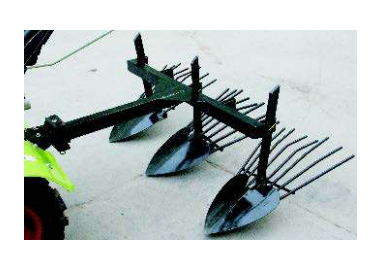

Multi-functional connecter

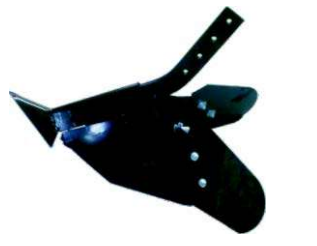

Adjustable plough

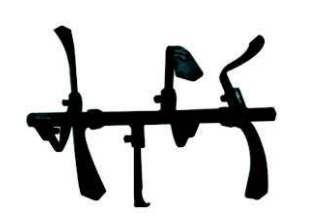

Deep land blades assy
Dry land blades assy 4PCS&3GROUP
Dry land blades assy 3PCS&4GROUP

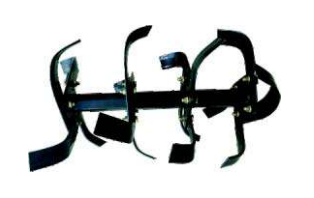

Dry land blades assy 4PCS&4GROUP

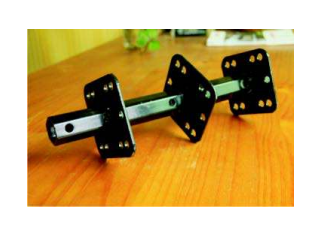

Dry land blades axle 23mm (3pcs*3group and 4pcs*3group)

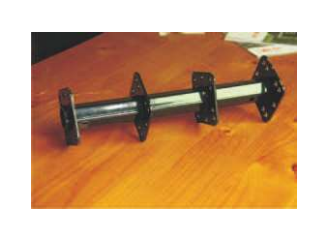

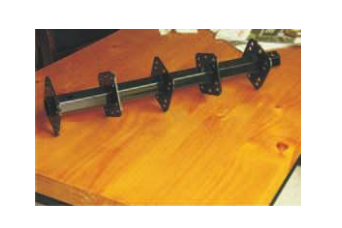

Dry land blades axle 32mm (4pcs*4group)
