Grain grinder Series

Grain grinder Series

The machine widely use for various grains grinding, like corn, wheat, beans, turmeric, chili, coffee beans, herbs etc, it can easily crush the dry crops into fine powder, The screen mesh size can be customized to get different sorts ff of powder with sieve plate of di erent sieve pores. Also we have different models to meet your demands. Advantages:Simple structure, easy to operate, Safe and stable, high efficiency, widely useful and durable, small size for easy to move.

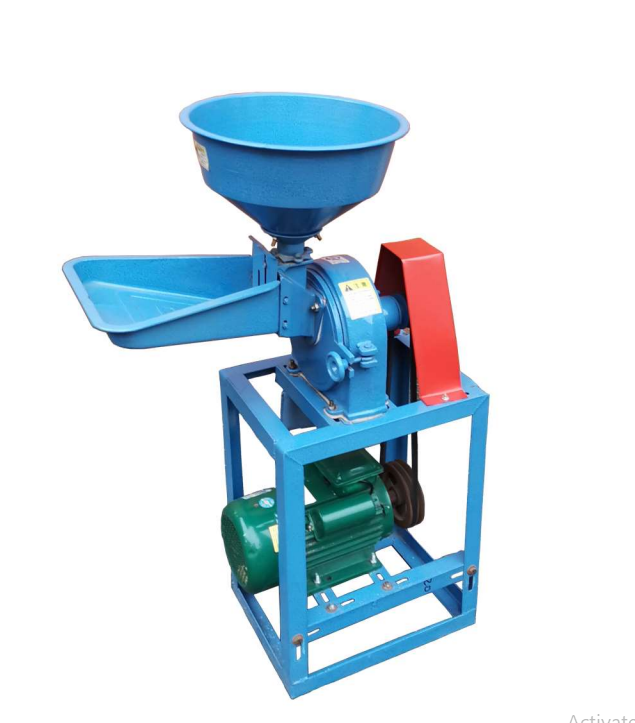

Grain grinder 9F-20

Main Technical Parameters:

Model : 9F-20
Drum rotation speed : 4800R/min
Production Efficency : ≥120kg/h
Diameter of sieve : 200mm
Weight-main unit : 22kg
Package size : 420*340*520mm
Boundary dimension : 700*370*1080mm
MOQ : MOQ mixed 20pcs
Warranty : 12months
Processing methods : Double crush by Hammer and blade

Motor

Model : YL100
Revolving speed (mm) 2800R/min
power (kw) 2.2
voltage (V) 220
Electricity (r/min) 12.9A
weight (kg) 25
Package Size : 410*230*260mm
frequency : 50
Temperature : 75℃
Insulation grade : B
Level of protection : IP44

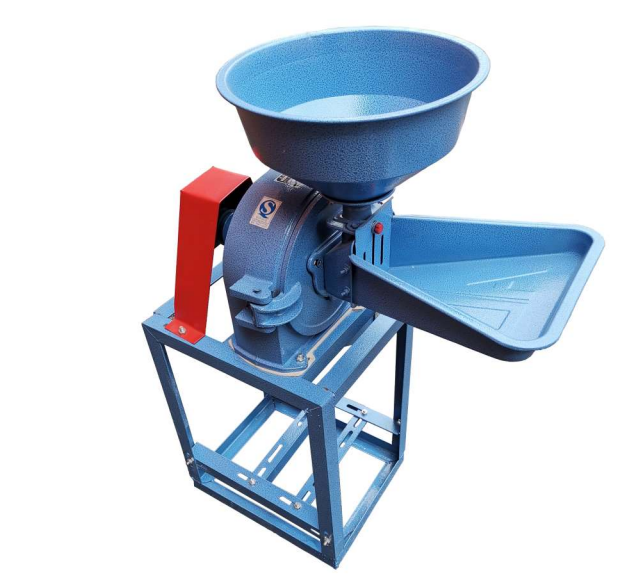

Grain grinder 9F-26

Main Technical Parameters:

Model : 9F-26
Drum rotation speed : 4800R/min
Production Efficency : ≥150kg/h
Diameter of sieve : 260mm
Weight-main unit : 30kg
Package size : 420*340*520mm
Boundary dimension : 700*370*1080mm
MOQ : MOQ mixed 20pcs
Warranty : 12months
Processing methods : Double crush by Hammer and blade

Motor

Model : YL100
Revolving speed (mm) 2800R/min
power (kw) 2.2
voltage (V) 220
Electricity (r/min) 12.9A
weight (kg) 25
Package Size : 410*230*260mm
frequency : 50
Temperature : 75℃
Insulation grade : B
Level of protection : IP44

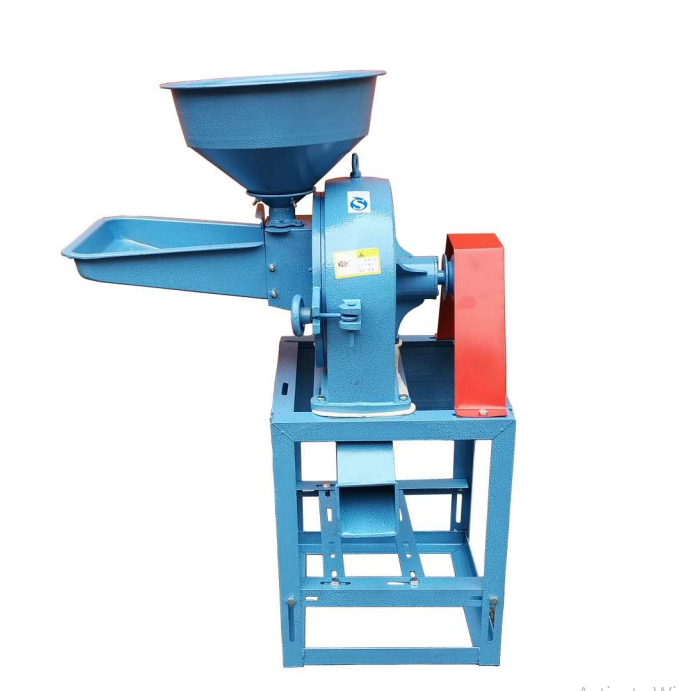

Grain grinder 9F-28

Main Technical Parameters:

Model : 9F-28
Drum rotation speed : 4800R/min
Production Efficency : ≥200kg/h
Diameter of sieve : 280mm
Weight-main unit : 40kg
Package size : 420*420*520mm
Boundary dimension : 800*420*1080mm
MOQ : MOQ mixed 20pcs
Warranty : 12months
Processing methods : Double crush by Hammer and blade

Motor

Model : YL100
Revolving speed (mm) 2800R/min
power (kw) 2.8
voltage (V) 220
Electricity (r/min) 12.9A
weight (kg) 26
Package Size : 410*230*260mm
frequency : 50
Temperature : 75℃
Insulation grade : B
Level of protection : IP44

Grain grinder 9F-30

Main Technical Parameters:

Model : 9F-30
Drum rotation speed : 4800R/min
Production Efficency : ≥250kg/h
Diameter of sieve : 300mm
Weight-main unit : 50kg
Package size : 420*420*520mm
Boundary dimension : 800*420*1080mm
MOQ : MOQ mixed 20pcs
Warranty : 12months
Processing methods : Double crush by Hammer and blade

Motor

Model : YL100
Revolving speed (mm) 2800R/min
power (kw) 3
voltage (V) 220
Electricity (r/min) 12.9A
weight (kg) 28
Package Size : 410*230*260mm
frequency : 50
Temperature : 75℃
Insulation grade : B
Level of protection : IP44

Power Tiller Accessories

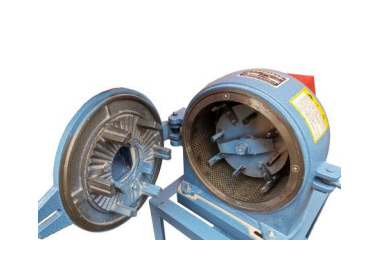

F26 claw type disc mill

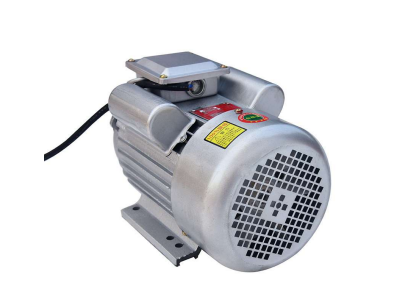

copper wire motor

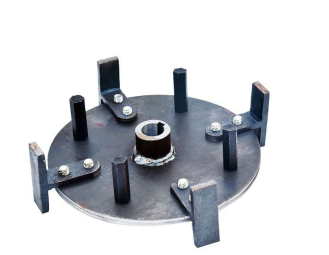

flour mill assy

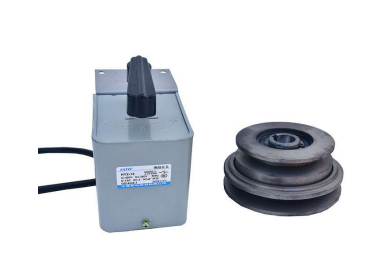

reversable pully and switch

flour mill screen set

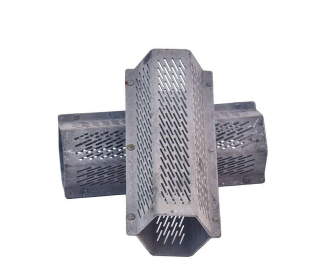

6N40 rice seive

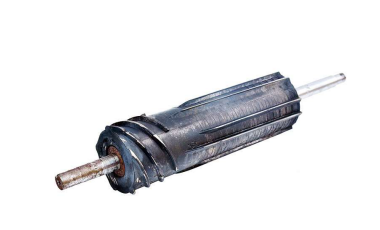

6N90 rice mill roller

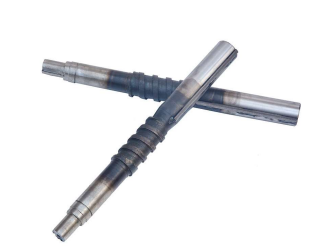

6N40 rice roller

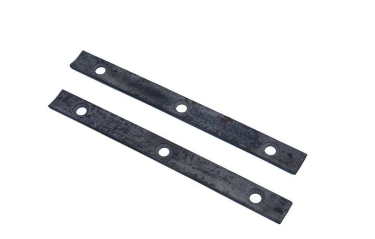

6N90 rice mill blade

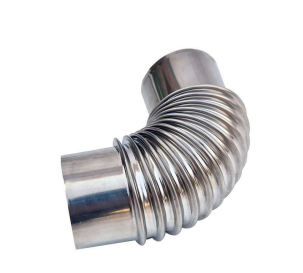

blow pipe

flour mill blade

6N90 Rice seive
